How Are Industrial Dust Filter Bags Manufactured?
Industrial dust filter bags are not simply made by cutting fabric into tubes and sewing them together. A finished filter bag must be matched to the dust collector design, cleaning method, operating temperature, dust characteristics, and gas conditions.
For example, filter bags used in pulse-jet dust collectors may require snap bands and filter cages for support, while reverse-air filter bags may require hanging or tensioning structures. The filter media, seam construction, and surface treatment also vary depending on the application.
Industrial dust filter bag manufacturing typically includes filter media selection, cutting, sewing, top and bottom assembly, surface treatment, inspection, and packaging. The exact process depends on the bag design and operating conditions.
Industrial Dust Filter Bag Manufacturing Process
The manufacturing process is not exactly the same for every product. Polyester pulse-jet bags, PPS filter bags for sulfur-containing flue gas, and woven fiberglass filter bags for reverse-air collectors can have very different requirements.
However, most industrial dust filter bags go through the following key steps.
1. Selecting the Filter Media
Everything begins with the filter media. The media determines how the bag performs under temperature, humidity, chemical exposure, abrasion, and dust-release conditions.
Before production begins, manufacturers need to understand the actual application rather than simply selecting the material with the highest temperature resistance.
Needle-Punched Felt and Woven Filter Media
Industrial dust filter bags are commonly made from needle-punched felt or woven filter media. Aokai offers seven standard filter bag materials widely used in industrial applications.
Based on these materials, we can also develop fiber blends and customize needle-punched felt with different thicknesses, weights, and air permeability levels to meet customer requirements. Woven fiberglass filter cloth solutions are also available.
Needle-punched felt is widely used in pulse-jet baghouses because it offers good dust-holding capacity and can be produced with different fiber combinations.
Woven filter media is commonly used in reverse-air and shaker dust collectors, especially where dimensional stability and specific cleaning behavior are important.
Common materials include:
- Polyester for many general dry dust applications
- Acrylic for improved moisture and hydrolysis resistance
- PPS for many sulfur-containing flue gas conditions
- Aramid and P84 for high-temperature applications
- PTFE for high chemical resistance
- Fiberglass for certain very high-temperature conditions
2. Confirming Bag Dimensions and Construction
Before cutting begins, the manufacturer confirms the bag dimensions and structural details.
This is especially important for replacement filter bags. Small differences in diameter, length, or top and bottom design can cause installation problems on site.
Typical details include:
- Bag diameter and length
- Filter cage dimensions
- Tube sheet hole size
- Snap band, cuff, steel ring, flange, or loop design
- Bottom style
- Seam construction
- Reinforcement at high-stress areas
- Installation direction and available space
For custom dust filter bags, a drawing, old sample or clear product photos are often the best starting point.Aokai offers seven standard filter bag materials widely used in industrial applications. Based on these materials, we can also develop fiber blends and customize needle felt with different thicknesses, weights, and air permeability to meet customer requirements, as well as woven fiberglass filter cloth solutions.
3. Cutting the Filter Media
Once the material and bag dimensions are confirmed, the filter media is cut according to the approved specification.
Accurate cutting matters because even a small error can affect bag diameter, bag length or the position of the top and bottom components.
For larger production runs, automated cutting equipment can improve consistency. For special bag designs, cutting may also include additional reinforcement pieces, cuffs, bottom discs, wear strips or sealing components.
At this stage, the goal is simple: every part must fit correctly before sewing begins.
4. Sewing the Filter Bag Body
After cutting, the filter media is formed into the bag body and sewn together.
The seam is one of the most important parts of a filter bag. A weak or poorly designed seam can fail long before the filter media reaches the end of its expected life.
Seam Construction Matters
The sewing method depends on the bag design and operating conditions. The manufacturer may need to consider:
- Sewing thread material
- Stitch density
- Seam direction
- Reinforcement design
- Abrasion resistance
- Temperature resistance
- Chemical resistance
For example, bags used in high-temperature or corrosive conditions may require sewing thread that can withstand the same environment as the filter media.
Reinforcement in High-Stress Areas
Some parts of the bag experience more stress than others.
The bag top, the area around the snap band, the bottom seam and any contact point with the cage or suspension system may need additional reinforcement.
This is particularly important for shaker baghouses, where the bags are repeatedly flexed during cleaning, and for applications with strong pulse cleaning or abrasive dust.

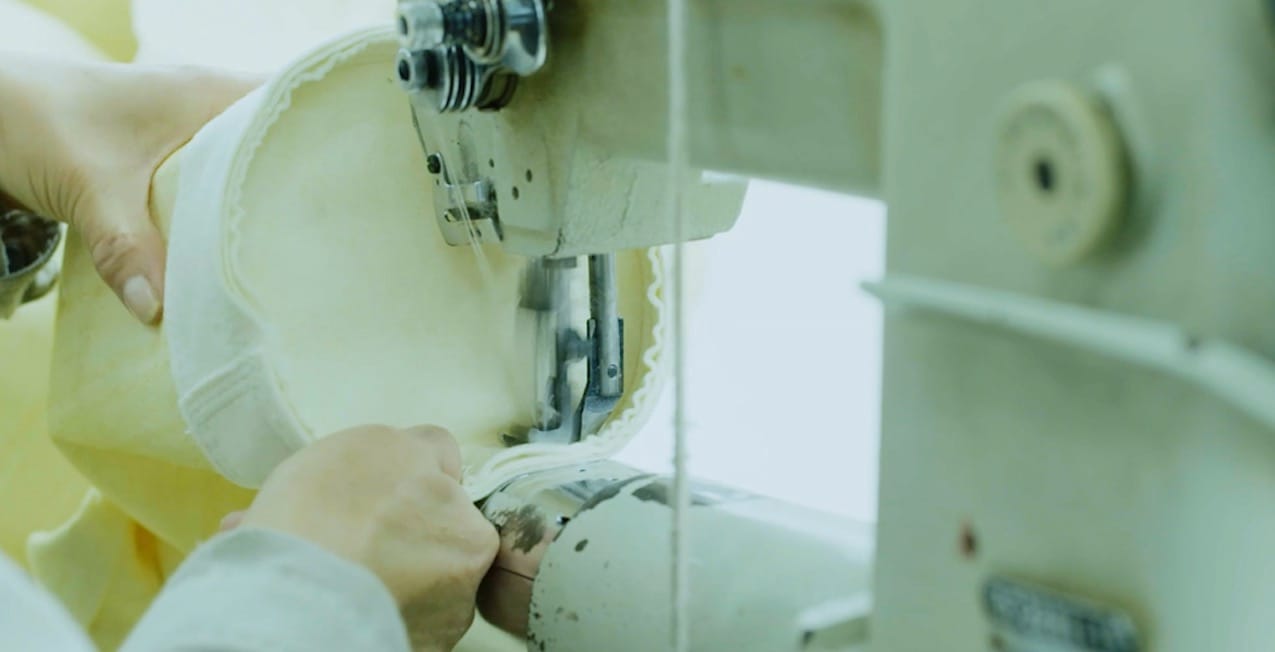

5. Assembling the Bag Top and Bottom
The top and bottom construction determines how the bag is installed and supported inside the dust collector.
For pulse-jet baghouses, the top may include a snap band that locks into the tube sheet. The bag is then supported by a filter cage.
For reverse-air or shaker collectors, the bag may use a cuff, ring, loop, hanging cap or tensioning arrangement instead.
Common top and bottom options include:
- Snap band tops
- Felt cuffs
- Steel rings
- Flanges
- Suspension loops
- Round bottoms
- Flat bottoms
- Reinforced bottoms
- Open or skirted bottoms
This is why “same material, same size” does not always mean “same filter bag.”
6. Applying Surface Finishing When Required
Some industrial dust filter bags require additional finishing to improve dust release, surface performance or resistance to certain operating conditions.
Common finishing options include:
- PTFE membrane lamination
- Anti-static treatment
- Water and oil repellent treatment
- Singeing
- Glazing
- Heat setting
A PTFE membrane can help control fine dust on the surface of the bag in suitable applications. Anti-static designs may be needed where static dissipation is part of the safety requirement. Water and oil repellent finishes can be useful where moisture or oily vapor may affect bag performance.
These options should be selected based on the process, not added simply because they sound more advanced.
7. Inspecting the Finished Filter Bags
Quality inspection is the final checkpoint before packing.
A filter bag may look simple, but several details must be checked before it leaves the factory.
Typical inspection items include:
- Filter media weight and thickness
- Bag diameter and length
- Sewing quality
- Seam appearance
- Top and bottom configuration
- Surface condition
- Quantity
- Packaging condition
PTFE membrane laminated industrial dust filter bags
For critical replacement projects, production photos or inspection photos can help customers confirm that the bags match the approved design before shipment.

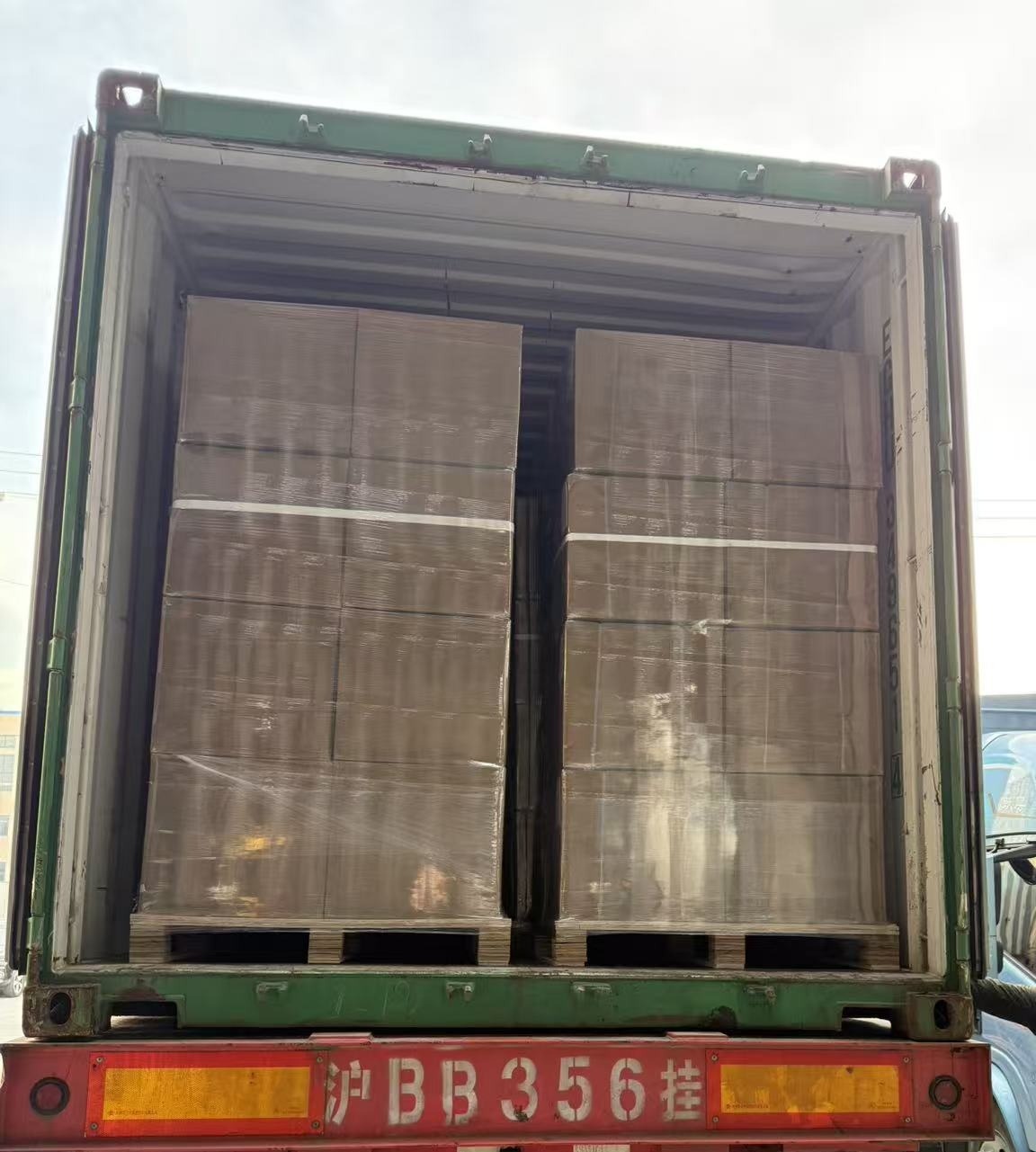

8. Packing and Preparing for Shipment
After inspection, the bags are packed to protect them during handling and transportation.
Packaging may vary depending on bag size, quantity, shipping method and customer requirements. Export orders may also require carton markings, labels, OEM packaging or special packing lists.
Proper packing matters because damaged snap bands, distorted bag tops or contaminated filter media can create problems before the bags are even installed.
Why Manufacturing Quality Matters
Poor manufacturing can shorten filter bag life even when the filter media itself is correct.
A bag may fail early because of:
- Incorrect dimensions
- Weak seams
- Wrong bag top or bottom design
- Poor cage compatibility
- Missing reinforcement
- Incorrect finishing treatment
- Inconsistent cutting or sewing
This is why choosing an industrial filter bag manufacturer is not only about comparing material names or unit prices. The manufacturer must be able to match the material, bag construction and finishing details to the dust collector and working conditions.
Can a Manufacturer Copy an Existing Filter Bag?
In many cases, yes.
A dust filter bag manufacturer can usually evaluate an existing sample, drawing or clear photos to identify the main construction details. These may include the bag diameter, length, media type, top design, bottom design, seam location and reinforcement areas.
However, copying the visible structure is only part of the job. It is also important to understand why the old bag was being replaced. If the original bag failed early, simply copying it may repeat the same problem.
What Information Helps With Custom Filter Bag Manufacturing?
To receive a more accurate recommendation, it is helpful to provide:
- Existing filter bag drawing, sample or photos
- Bag diameter and length
- Quantity required
- Dust collector type
- Dust type and application industry
- Operating temperature
- Gas chemistry and moisture level
- Cleaning method and pulse pressure
- Current filter bag problems
- Delivery destination
Even if some information is missing, a professional manufacturer can use the available details to ask the right follow-up questions.
Final Thoughts
Industrial dust filter bags are manufactured through a series of controlled steps: selecting the right media, confirming bag construction, cutting, sewing, assembling the top and bottom, applying finishes when needed, inspecting the finished bags and packing them for shipment.
The process may look straightforward, but every step affects installation, dust collection performance and service life.
If you are replacing existing baghouse filter bags, it is best to send your drawing, old sample or product photos together with your operating conditions. Aokai can help review the filter media, bag construction and finishing options before production begins.
