Cement Industry

Industry Overview

Cement is manufactured through a closely controlled chemical combination of calcium, silicon, aluminum, iron, and other ingredients (refer to the blog “How Cement is Made” for more information). Materials used to manufacture cement include limestone, shells, and chalk combined with shale, clay, slate, silica sand, and iron ore. These ingredients, when heated at high temperatures form a rock-like substance that is ground into the fine powder that we commonly think of as cement. Cement mixed with sand, gravel, and water makes up concrete. Because of their abundant resources, easy operation, durability and versatility, cement and concrete are the most widely used construction materials. The soaring population growth and urbanization expected over the next few decades worldwide suggest that cement demand will keep growing. Globally, each year over 4 billion tonnes of cement is produced. While it helps to pave the way for modernization, the cement manufacturing comes with adverse impact on the environment, climate change and health:

  • Most cement plants today use coal as fuel for the pyroprocessing. It takes 200-450 kg of coal to produce 1 tonne of cement;
  • The cement industry is the largest source of PM (particulate matter) emissions, accounting for 40 percent of PM emissions from all industrial sources. During cement production the average emission is 0.13 kg of dust per ton of produced cement;
  • Dust emissions from cement production cause serious respiratory illnesses. For example, China produces 60% of the world’s cement. While it helps to build China’s mammoth cities, sprawling roads, and other infrastructure, it comes at a dangerous cost: 1.6 million Chinese citizens die each year from respiratory illnesses linked to small particulate matter emissions, of which 27% come from cement production.

Dust filtration and collection measurements have to be implemented, and maintained at their optimal efficiency to mitigate the adverse impact of cement production.

Cement Manufacturing Process Flow Chart

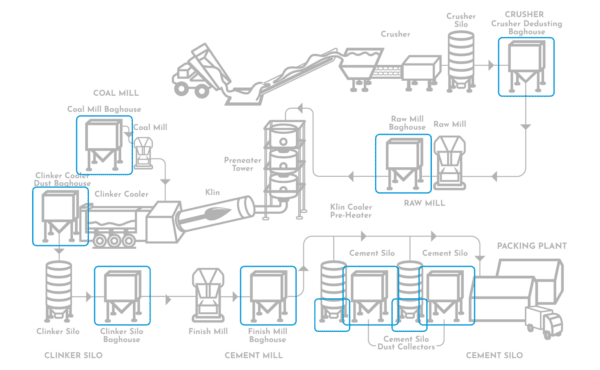

Dust Collection Points in Cement Plants

Core Application Process

1

Raw Material Preparation

2

Clinker Calcination

3

Cement Grinding

4

Finished Product Storage and Transport

Cement Industry Filtration Characteristics

Dust Filtration Challenges

Dust filtration at cement plants can be challenging as dust emission runs through the entire production processes, which includes raw material milling & grinding, coal grinding, pyroprocessing, clinker cooling, finish milling & grinding, and packaging & bulk loading. Each production process generates a different type of dust, and therefore, requires a specific dust filtration solution. In general, dust from various production processes at cement plants has the following characteristics:

  • Light weight and fine particles, with size ranges from micrometer to nanometer
  • High moisture at high temperature
  • High concentration
  • Complex composition
  • Abrasive
filter bags for cement

Selection Guide for Filter Bags in Different Sections of Cement Plants

Cement Production SectionsTemp(℃)Recommended Filter Media
Raw material crushing<130Polyester
Homogenization store<130Polyester
Kiln tail100-240Aramid、P84、Fiberglass
Kiln head80-200
Clinker silo<130Polyester
Cement mill<130Polyester、Acrylic
Packaging<130Polyester
Coal mill<130Anti-static Polyester
Slag mill<130Polyester、Acrylic
Cement Industry Filtration Solutions

Filter Media and Filter Bags for Cement Plants

Aokai baghouse filter bag products that are most commonly used in the Cement Industry:

Low Temperature Cost-effectiveness Filter Bags

涤纶覆膜1

AKG Customized Filter Bags-AKG075WM

Glass fiber composite dust collector bag

P84 Filter Bags-API155M

P84 filter bag

PaveClean® Low Emission Filter Bags-PRO850

reverse air filter bag

Cement Plant Filter Bags – Technical Specifications

CharacteristicsRatingRatingRating
ProductAKG075WMAPI155MPRO850
Fiber Content100% Fiberglass100% Polyimide100% Aramid
Weight750g/m² (22.12oz/yd²)550g/m² (16.22oz/yd²)500g/m² (14.75oz/yd²)
Thickness1.0mm (0.039in)2.8mm (0.110in)2.40mm (0.094in)
Continuous Operating Temperature260°C (500°F)240°C (464°F)204°C (399.2°F)
Maximum Surge Temperature280°C (536°F)260°C (500°F)250°C (482°F)
Abrasion ResistanceFairFairExcellent
Acid ResistanceFairGoodGood
Alkali ResistanceFairFairGood
Moist Heat ResistantGoodGoodGood
Energy AbsorbsionGoodGoodGood
Filtration Property99.99%99.99%99.99%

Practical Application Case of Filter Bags in Cement Industry

cement silo filter bags

2500t/d cement plant kiln tail dust collector

Filter media:AKG905M

Bag size:Φ160×6500 mm

Bag quantity:2680 pcs

Gas volume:280000m3/h

Working temp:100-220℃

Gas Composition:SO2<200mg/m3 NOx<400mg/m3 O2<12%

Clean method:Pulse jet blow

Emission:<10 mg/Nm³

Bag loading time:2020.06

Cement Plant Dust Collection

5000t/d cement plant kiln head dust collector

Filter media:CONEX155

Bag size:Φ160×7500 mm

Bag quantity:3000 pcs

Gas volume:600000m3/h

O2:21%

Working temp:80-180℃

Clean method:Pulse jet blow

Bag loading time:2021.01

Emission:<10 mg/Nm³

Working temp:80-180℃
