Fiberglass Filter Bags
Aokai manufactures woven and needle felt fiberglass filter bags for industrial baghouses operating under high-temperature conditions. Select from fiberglass needle felt, woven fiberglass fabric, and fiberglass composite solutions based on gas temperature, dust properties, chemical conditions, cleaning system, and required service life.
Glassfiber Filter Bags can be constructed using either woven or nonwoven fiberglass fabrics. In addition, fiberglassfilter media can be treated with various options so that they become best suited for various operating conditions,applications, and industries.
- High Temperature Resistance
Can withstand temperatures up to 260 ° C or higher,depending on the specific treatment and construction. - Chemical Resistance
Excellent resistance to acids, alkalis and other corrosivesubstances. - Mechanical Strength
Durable and wear-resistant, extending the service life ofthe filter bag. - Low elongation, dimensional stability
- High Filtration Efficiency
Capable of capturing fine particles and providing effi-cient filtration performance.

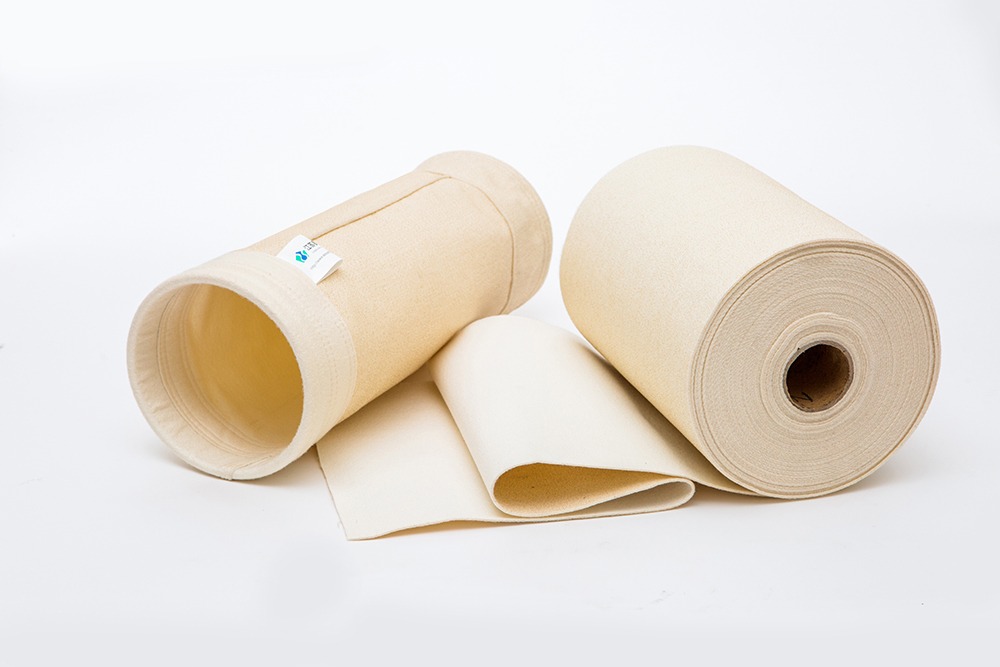

Learn About Fiberglass Filter Cloth
Non-woven Fiberglass Filter Cloth
Woven fiberglass filter cloth
Woven fiberglass filter bags(AKG075WM)
Woven Fiberglass Filter Cloth
| Item | Non-woven Fiberglass Filter Bags | Woven Fiberglass Filter Bags |
|---|---|---|
| Material Structure | Fiberglass fibers are mechanically needled into a felt structure, usually with a supporting scrim. | Fiberglass yarns are interlaced in warp and weft to form a stable woven fabric. |
| Typical Temperature Capability | Typically up to 180–240°C, depending on fiber construction and finishing. | Up to 260°C continuous operation in selected constructions. |
| Filtration Performance | Three-dimensional felt structure provides good fine dust capture and dust-holding capacity. | Filtration performance depends on weave density and surface treatment; often selected for stable high-temperature operation. |
| Dimensional Stability | More flexible, with good adaptability to different baghouse designs. | High tensile strength, low elongation, and excellent dimensional stability. |
| Best-Fit Applications | Fine dust collection, pulse-jet baghouses, and medium-to-high-temperature filtration. | High-temperature baghouses requiring low stretch and stable bag dimensions. |
Technical Specifications of Fiberglass Non-woven Filter Bags
| ITEM | AKG900 (M) | AKG901(M) |
|---|---|---|
| Working temperature (°C) | 180 | 240 |
| Peak temperature (°C) | 220 | 260 |
| Emission (mg) | / | / |
| Weight (g/m2) | ≥900 | ≥900 |
| Thickness (mm) | 3.2±10% (3.0±10%) | 3.2±10%(3.0±10%) |
| Air permenability (m3/m2/min) | 15-28 (2-5) | 15-28 (2-5) |
| Tensile strength / warp（N/5cm） | ≥1500 | ≥1500 |
| Tensile strength / weft（N/5cm） | ≥1500 | ≥1500 |
| Tensile elongation/ warp（%） | ≤10 | ≤10 |
| Tensile elongation/weft（%） | ≤10 | ≤10 |
| 24-hour heat shrink / warp（%） | ≤1.5 | ≤1.5 |
| 24-hour heat shrink / weft（%） | ≤1.0 | ≤1.0 |
| Post-treatment | PTFE Dipping / PTFE Membrane |
Fiberglass Needle Felt Filter Bags
Nonwoven Fiberglass Filter Bag(AKG901(M))
E-glass dust filter bag(AKG900(M))
Technical Specifications of Fiberglass Woven Filter Bags
| ITEM | AKG075WM |
|---|---|
| Working temperature (°C) | 260 |
| Peak temperature (°C) | 280 |
| Emission (mg) | / |
| Weight (g/m2) | ≥750 |
| Thickness (mm) | 1.0±0.2 |
| Air permenability (m3/m2/min@200Pa) | 2-4 |
| Tensile strength / warp（N/5cm） | ≥2500 |
| Tensile strength / weft（N/5cm） | ≥2500 |
| Tensile elongation / warp（%） | ≤15 |
| Tensile elongation / weft（%） | ≤10 |
| 24-hour heat shrink / warp（%） | ≤1.0 |
| 24-hour heat shrink / weft（%） | ≤1.0 |
| Post-treatment | PTFE Dipping / PTFE Membrane |
Fiberglass Woven Fabric Filter Bags
Woven Fiberglass Filter Bag(AKG075WM)
Woven fiberglass filter bags(AKG075WM)
Fiberglass Material Comparison
| Material Type | Continuous Temperature | Main Features | Recommended Applications |
|---|---|---|---|
| Fiberglass Needle Felt（AKG900M） | Up to 180°C | Good filtration efficiency and cost-performance balance | Stable medium-to-high temperature dust collection |
| Fiberglass Composite Needle Felt（AKG901M） | Up to 240°C | Higher heat resistance and better dimensional stability | Higher-temperature processes with moderate temperature fluctuation |
| Woven Fiberglass Filter Bags（AKG075WM） | Up to 260°C | Low elongation, strong dimensional stability, suitable for high-temperature operation | Cement, steel, power generation, and other high-temperature baghouses |
| FMS Composite Filter Bags | Depends on material structure | Better resistance to high temperature, abrasion, and complex gas conditions | Demanding applications with high heat, abrasive dust, or difficult flue gas |
Surface Treatments Available
PTFE Coating
PTFE coating allows dust to remain on the surface of the film and not enter the fibers of the filter material, thereby extending the service life of the filter material.
PTFE Impregnation
The filter material is impregnated in a PTFE solution and then dried to improve the filter material’s resistance to temperature and chemical corrosion.
Graphite coating
Improve the high temperature resistance and oxidation resistance of the filter bag, while enhancing acid and alkali resistance.
Calendering
Calendering makes the filter material surface smooth and uniform in thickness, making it denser, smoother, and easier to clean. It can also reduce the pore size, making it difficult for dust to enter the deep layer of the filter material, thereby increasing the service life of the filter material.
Graphite-Treated Fiberglass Filter Bags
Fiberglass Filter Bags
Typical Applications
Asphalt Mixing Plants
Steel & Metallurgy
Waste Incinerators
Power Generation
Custom Filter Bags Solutions for Every Industry
Tell us your working conditions, and we will recommend the best solution within 24 hours.
✔ Free Sample | ✔ Fast Delivery 7–15 Days | ✔ Factory Direct Price
From Sample Analysis to Engineered Filter Solutions
Our Services
Step 1
Sample Analysis & Application Review
- Analyze fabric structure and material composition
- Review wear patterns, clogging or failure reasons
- Evaluate dust characteristics and operating conditions
Step 2
R&D & Material Engineering
- Needle felt material selection and optimization
- Fiber blend, weight and permeability design
- Surface treatments (PTFE membrane, singeing, glazing)
Step 3
Filter Bag & Cage Design
- Accurate size and construction
- Cage wire layout and surface finishing
- Compatible with pulse jet and cleaning systems
Step 4
Sampling & Confirmation
- Custom samples for testing
- Performance confirmation before mass production
- Adjustments based on test feedback
Step 5
Fast & Transparent Quotation
-
Material specification
-
Unit price & MOQ
-
Lead time and delivery terms
Step 6
Manufacturing, QC & Delivery
- All products are manufactured under strict quality control and shipped with export-ready packaging.
Ongoing technical support is available after delivery.
Our Manufacturing Strength
As a leading manufacturer of industrial filtration media in China, we have 20+ years of industry experience, a 27,000㎡ modern production facility, and 8 advanced production lines, with an annual output of over 2 million filter bags. Certified with ISO9001, ISO14001, and ISO45001, our products are exported to 40+ countries and regions.
Years of Experience
㎡ – Modern Production Base
Customers Worldwide
Exporting Country
3,000,000 pcs
Annual Filter Bag Production
- Automatic Multi-Task Production Lines
- Precision Sewing
- Heat Sealing
- Pinhole Sealing
- Seam Lamination
2,000,000 m
Annual Cage Production
- Filter Cages of All Shapes & Sizes
- Cage Treatments
- Silicone Coating
- Galvanizing
- Passivation (stainless steel)
Quality Control
Raw material quality control
The raw materials of Aokai have undergone tests for 13 indicators in the laboratory, including fiber composition, air permeability, breaking strength and elongation at break, thermal shrinkage, moisture regain, oil content, and fiber melting point, with all test standards surpassing the relevant criteria.
Production process quality control
The factory has obtained ISO9001 and ISO14001 certifications. It operates in accordance with the 7S management standards, strictly controls product quality in line with international high-end product testing standards, retains inspection records for more than 3 years and electronic records permanently, ensuring the traceability of each batch of products.
