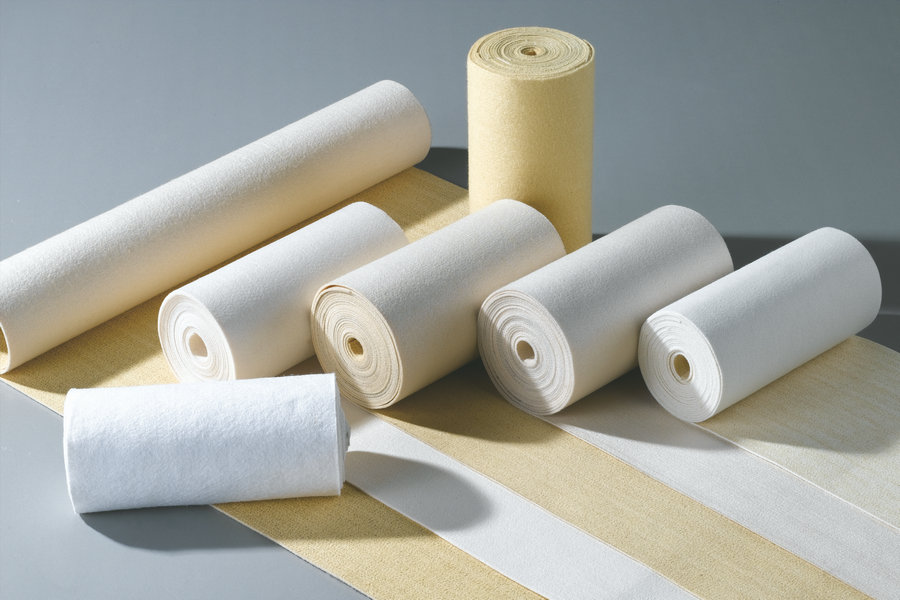

Fiberglass Filter Cloth
Industrial-Grade Fiberglass Filter Cloth for Extreme High-Temperature Filtration
Factory-direct supply of premium fiberglass filter fabrics in rolls. Engineered to withstand continuous operating temperatures up to 260°C (500°F). We offer customized surface treatments including PTFE membrane, PTFE dipping, and Graphite to meet your exact industrial dust collection needs.
- Extreme Heat Resistance Capable of operating continuously at 240°C and handling temperature surges up to 260°C, making it the ultimate choice for high-temp flue gas environments.
- Custom Surface Treatments We apply specialized finishes such as PTFE membrane (for surface filtration), silicone, graphite, and water/oil repellent treatments to enhance durability, acid/alkali resistance, and dust release.
- High Tensile Strength & Stability Woven from premium E-glass fibers, our cloth offers excellent dimensional stability, minimal elongation, and high tensile strength to prevent tearing during baghouse pulse-jet cleaning.
Learn About Fiberglass Filter Bags
Product Specifications of fiberglass filter fabric
Non-woven Fiberglass Filter Cloth
Woven fiberglass filter cloth
Woven fiberglass filter bags(AKG075WM)
Woven Fiberglass Filter Cloth
| Item | Non-woven Fiberglass Filter Bags | Woven Fiberglass Filter Bags |
|---|---|---|
| Material Structure | Fiberglass fibers are mechanically needled into a felt structure, usually with a supporting scrim. | Fiberglass yarns are interlaced in warp and weft to form a stable woven fabric. |
| Typical Temperature Capability | Typically up to 180–240°C, depending on fiber construction and finishing. | Up to 260°C continuous operation in selected constructions. |
| Filtration Performance | Three-dimensional felt structure provides good fine dust capture and dust-holding capacity. | Filtration performance depends on weave density and surface treatment; often selected for stable high-temperature operation. |
| Dimensional Stability | More flexible, with good adaptability to different baghouse designs. | High tensile strength, low elongation, and excellent dimensional stability. |
| Best-Fit Applications | Fine dust collection, pulse-jet baghouses, and medium-to-high-temperature filtration. | High-temperature baghouses requiring low stretch and stable bag dimensions. |
Technical Specifications of Fiberglass Filter cloth
| ITEM | AKG900 (M) | AKG901(M) |
|---|---|---|
| Working temperature (°C) | 180 | 240 |
| Peak temperature (°C) | 220 | 260 |
| Emission (mg) | / | / |
| Weight (g/m2) | ≥900 | ≥900 |
| Thickness (mm) | 3.2±10% (3.0±10%) | 3.2±10%(3.0±10%) |
| Air permenability (m3/m2/min) | 15-28 (2-5) | 15-28 (2-5) |
| Tensile strength / warp（N/5cm） | ≥1500 | ≥1500 |
| Tensile strength / weft（N/5cm） | ≥1500 | ≥1500 |
| Tensile elongation/ warp（%） | ≤10 | ≤10 |
| Tensile elongation/weft（%） | ≤10 | ≤10 |
| 24-hour heat shrink / warp（%） | ≤1.5 | ≤1.5 |
| 24-hour heat shrink / weft（%） | ≤1.0 | ≤1.0 |
| Post-treatment | PTFE Dipping / PTFE Membrane | |
| Standard Width（mm） | 2250 | 2250 |
Fiberglass Needle Felt
fiberglass filter cloth
Technical Specifications of Fiberglass Woven Filter cloth
| ITEM | AKG075WM |
|---|---|
| Working temperature (°C) | 260 |
| Peak temperature (°C) | 280 |
| Emission (mg) | / |
| Weight (g/m2) | ≥750 |
| Thickness (mm) | 1.0±0.2 |
| Air permenability (m3/m2/min@200Pa) | 2-4 |
| Tensile strength / warp（N/5cm） | ≥2500 |
| Tensile strength / weft（N/5cm） | ≥2500 |
| Tensile elongation / warp（%） | ≤15 |
| Tensile elongation / weft（%） | ≤10 |
| 24-hour heat shrink / warp（%） | ≤1.0 |
| 24-hour heat shrink / weft（%） | ≤1.0 |
| Post-treatment | PTFE Dipping / PTFE Membrane / Graphite Treated |
| Standard Width（mm） | 1650/1830 |
Fiberglass Woven Fabric
Woven Fiberglass Filter Bag(AKG075WM)
Woven fiberglass filter bags(AKG075WM)

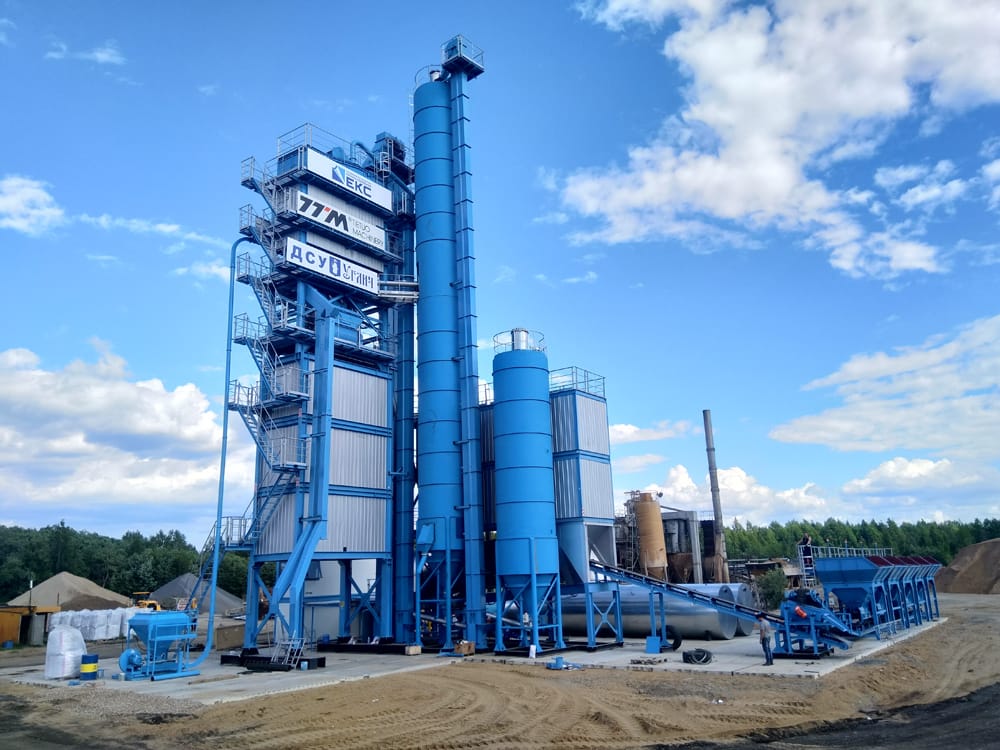

Typical Applications
Our fiberglass filter fabric is widely used by filter bag manufacturers and plants across various heavy industries
Custom Filter Cloth Solutions for Every Industry
Tell us your working conditions, and we will recommend the best solution within 24 hours.
✔ Free Sample | ✔ Fast Delivery 7–15 Days | ✔ Factory Direct Price
From Sample Analysis to Engineered Filter Solutions
Our Services
Step 1
Sample Analysis & Application Review
- Analyze fabric structure and material composition
- Review wear patterns, clogging or failure reasons
- Evaluate dust characteristics and operating conditions
Step 2
R&D & Material Engineering
- Needle felt material selection and optimization
- Fiber blend, weight and permeability design
- Surface treatments (PTFE membrane, singeing, glazing)
Step 3
Filter Bag & Cage Design
- Accurate size and construction
- Cage wire layout and surface finishing
- Compatible with pulse jet and cleaning systems
Step 4
Sampling & Confirmation
- Custom samples for testing
- Performance confirmation before mass production
- Adjustments based on test feedback
Step 5
Fast & Transparent Quotation
-
Material specification
-
Unit price & MOQ
-
Lead time and delivery terms
Step 6
Manufacturing, QC & Delivery
- All products are manufactured under strict quality control and shipped with export-ready packaging.
Ongoing technical support is available after delivery.
Our Manufacturing Strength
As a leading manufacturer of industrial filtration media in China, we have 20+ years of industry experience, a 27,000㎡ modern production facility, and 8 advanced production lines, with an annual output of over 2 million filter bags. Certified with ISO9001, ISO14001, and ISO45001, our products are exported to 40+ countries and regions.
Years of Experience
㎡ – Modern Production Base
Customers Worldwide
Exporting Country
3,000,000 pcs
Annual Filter Bag Production
- Automatic Multi-Task Production Lines
- Precision Sewing
- Heat Sealing
- Pinhole Sealing
- Seam Lamination
2,000,000 m
Annual Cage Production
- Filter Cages of All Shapes & Sizes
- Cage Treatments
- Silicone Coating
- Galvanizing
- Passivation (stainless steel)
Quality Control
Raw material quality control
The raw materials of Aokai have undergone tests for 13 indicators in the laboratory, including fiber composition, air permeability, breaking strength and elongation at break, thermal shrinkage, moisture regain, oil content, and fiber melting point, with all test standards surpassing the relevant criteria.
Production process quality control
The factory has obtained ISO9001 and ISO14001 certifications. It operates in accordance with the 7S management standards, strictly controls product quality in line with international high-end product testing standards, retains inspection records for more than 3 years and electronic records permanently, ensuring the traceability of each batch of products.
